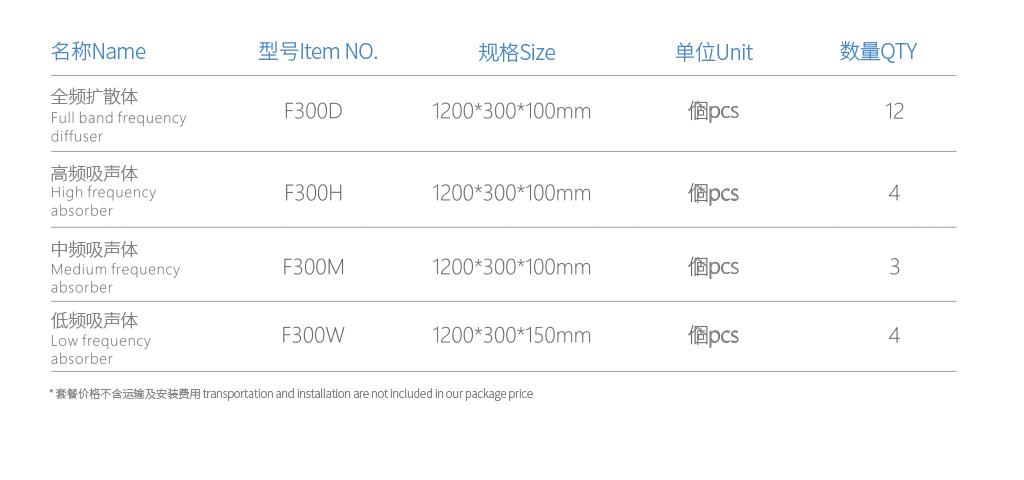

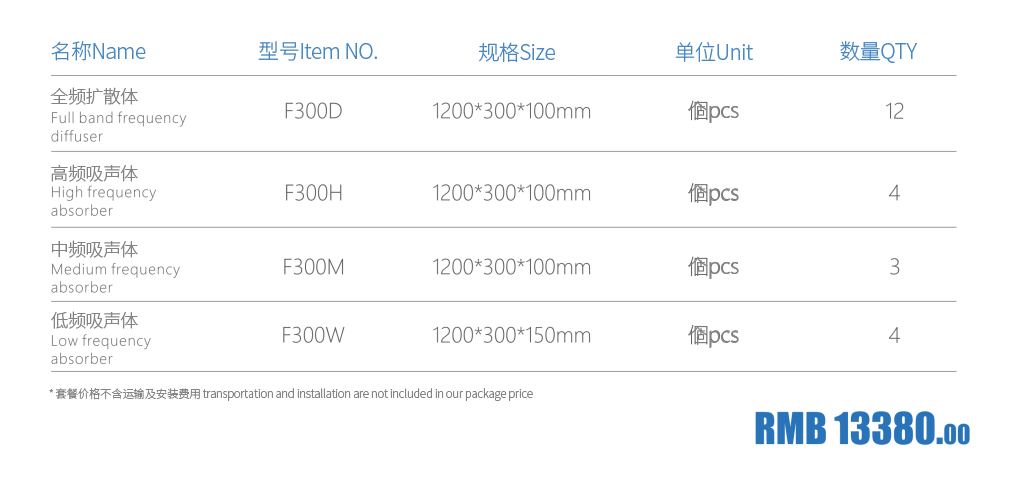

套餐清单
F300H 高频吸声体 High frequency absorber
基材：Polymer 高分子聚合物 / Polyether polyol 聚醚多元醇阻燃声学棉
饰面：E0环保水性颗粒面漆
特点：高密度Polyether polyol声学棉显著提升个体吸声量，QRD序列排布结构收获宽频吸收效果，有效解决空间中高频余量混响和平衡反射。
规格：H1200 * W300 * D100mm ≤1.3Kg/个
Base Material: Polymer/Polyether polyol fire retardant acoustic foam
Finish: E0 ECO water based paint
Features: High-density Polyether polyol acoustic foam improves sound that the model absorbs; QRD array achieves broad band frequency absorption, solving the problem arise from too much high frequency and balanced reflection
Size: H1200 * W300 * D100mm≤1.3kg/pcs
F300M 中频吸声体 Medium frequency absorber
基材：Polymer 高分子聚合物 / Polyether polyol 聚醚多元醇阻燃声学棉
饰面：E0环保水性颗粒面漆
特点：Polymer高分子聚合物浇注成型半密闭空腔结构，导流口配备U型Polyether polyol声学棉成功掌控流阻指数，形成有效应对300-800Hz的定量捕捉器。
规格：H1200 * W300 * D100mm ≤1.6Kg/个
Base Material: Polymer/Polyether polyol fire retardant acoustic foam
Finish: E0 ECO water based paint
Features: The semi-closed cavity structure which formed by pouring polymer material, and the U-type Polyether polyol acoustic foam controls Flow resistance index, form a capture to deal with 300-800Hz
Size: H1200 * W300 * D100mm≤1.6kg/pcs
F300W 低频吸声体 Low frequency absorber
基材：Polymer 高分子聚合物 / Polyether polyol 聚醚多元醇阻燃声学棉
饰面：E0环保水性颗粒面漆
特点：高密度Polyether polyol声学棉显著提升个体吸声量， QRD序列排布结合非对等后空腔结构获得定量中低频吸
收效果，组合产品使用轻松成就曲线平直声环境。
规格：H1200 * W300 * D150mm ≤1.6Kg/个
Base Material: Polymer/Polyether polyol fire retardant acoustic foam
Finish: E0 ECO water based paint
Features: High-density Polyether polyol acoustic foam improves the sound that the model absorbs; QRD array and in-coordinated back cavity structure achieve certain low-frequency absorption. A balanced acoustic environment will be obtained via suitable products combination.
Size: H1200 * W300 * D150mm≤1.6kg/pcs
F300D 全频扩散体 Full band frequency diffuser
基材：Polymer 高分子聚合物
饰面：E0环保水性颗粒面漆
特点：Polymer高分子聚合物结合高强度无机涂层，既满足了设计扩散频率对材质面密度的要求，又大幅降低产品自重和克服传统材质缺陷。 QRD序列有着显著的扩散效果，不损害自然混响的作用下，有效改善小空间声干涩，提高环境音质丰富度及立体感。
规格：H1200 * W300 * D100mm ≤2.8Kg/个
Base Material: Polymer,chemical compound with large molecules
Finish: E0 ECO water based paint
Acoustic structure: Combining high tensile inorganic coating, Polymer satisfies the technical requirement from the design on diffusion frequency and density of materials. At the same time, we decrease product weight so that eliminate defects of traditional materials. QRD array plays diffusion role effectively. When bettering sound dryness in small rooms, it improves sound fullness and surrounding sense without hurting natural RT60.
Size: H1200 * W300 * D100mm ≤2.8kg/pcs
适用于空间
Applicable to 15 – 30m²

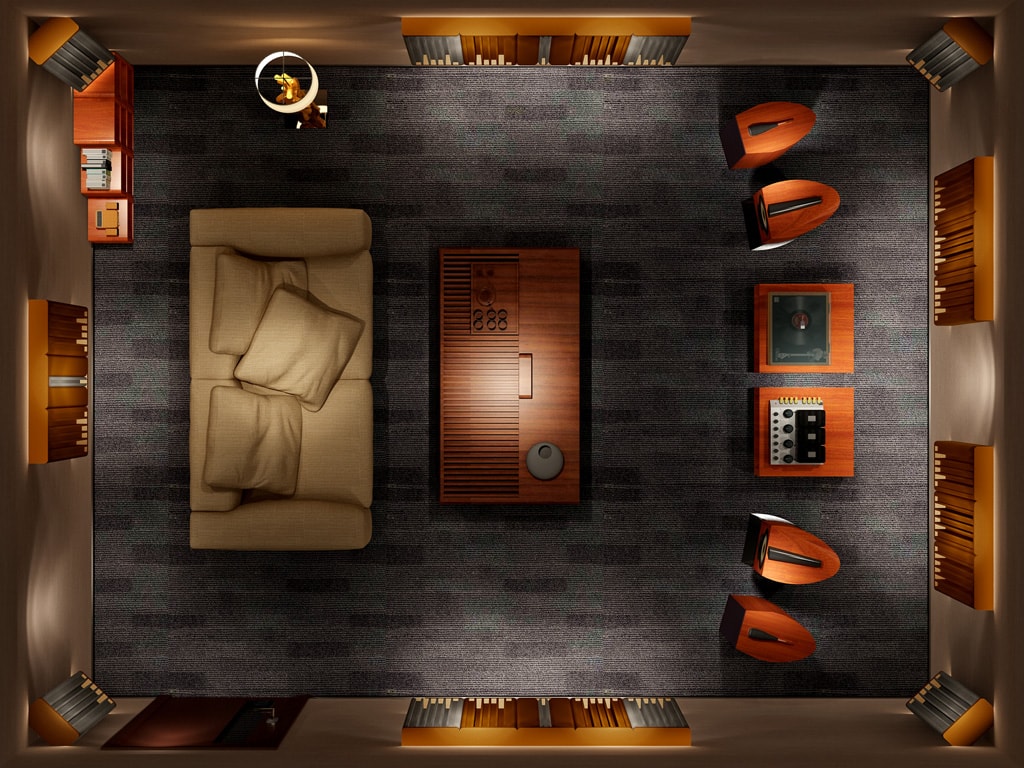

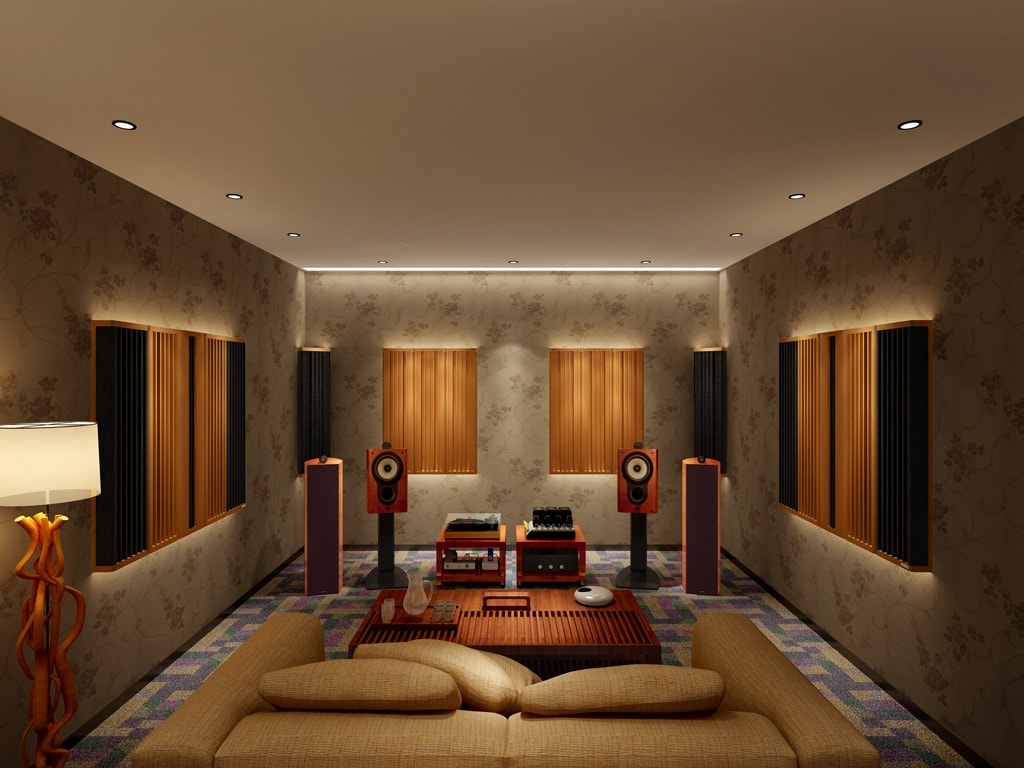

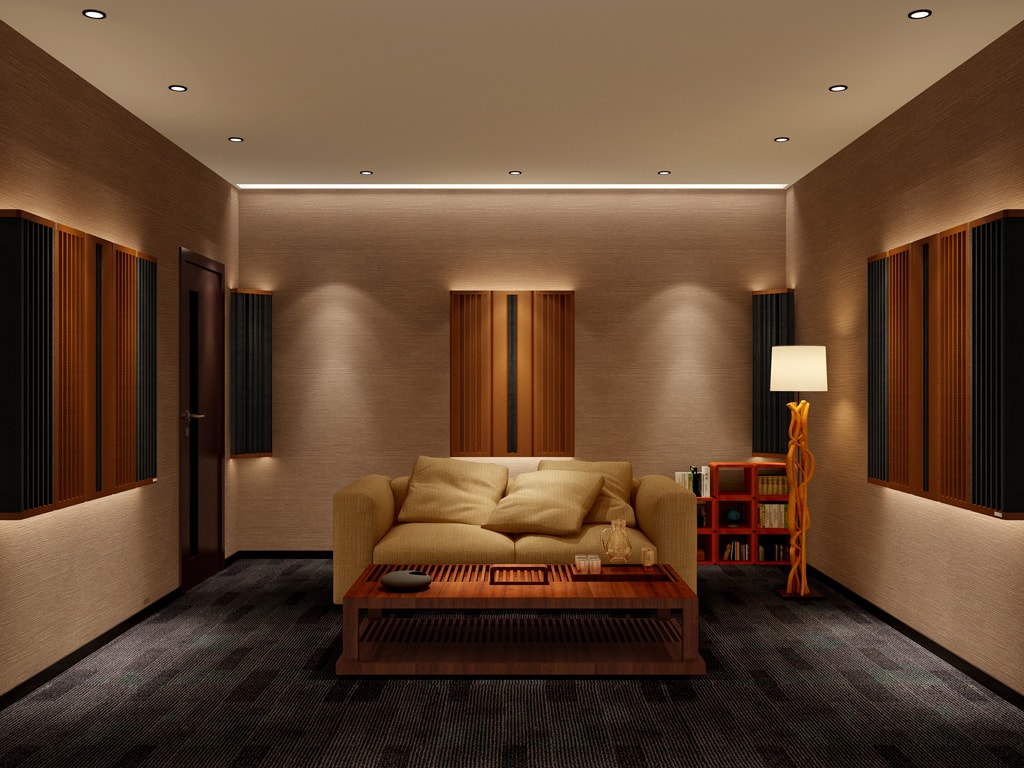

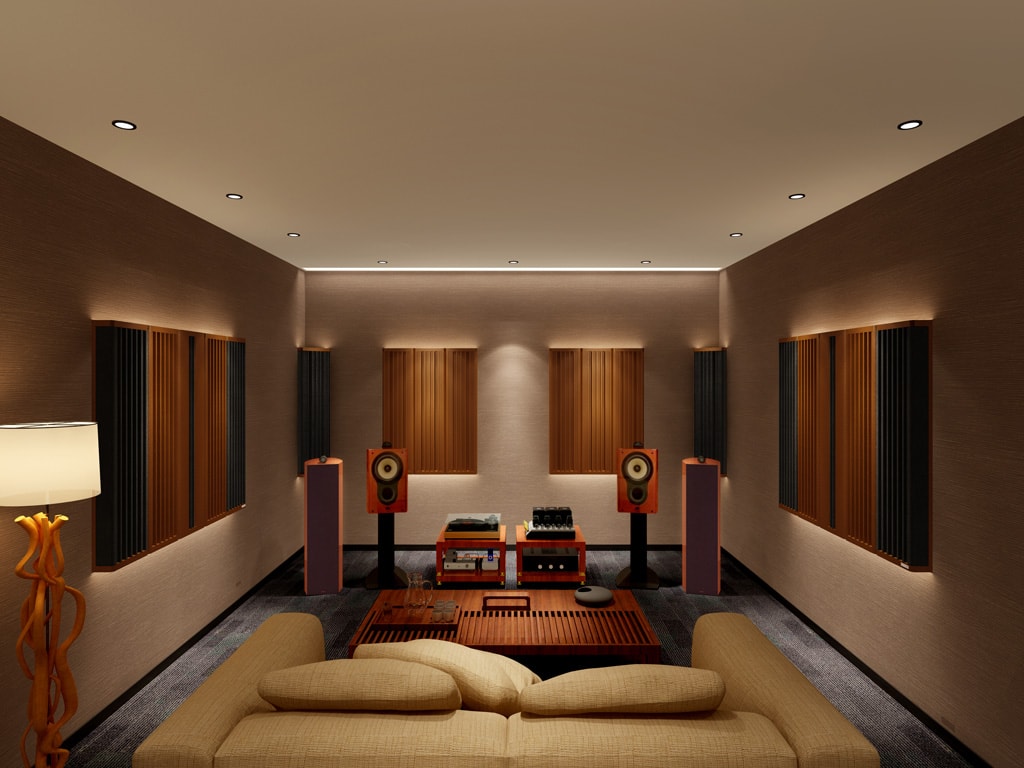

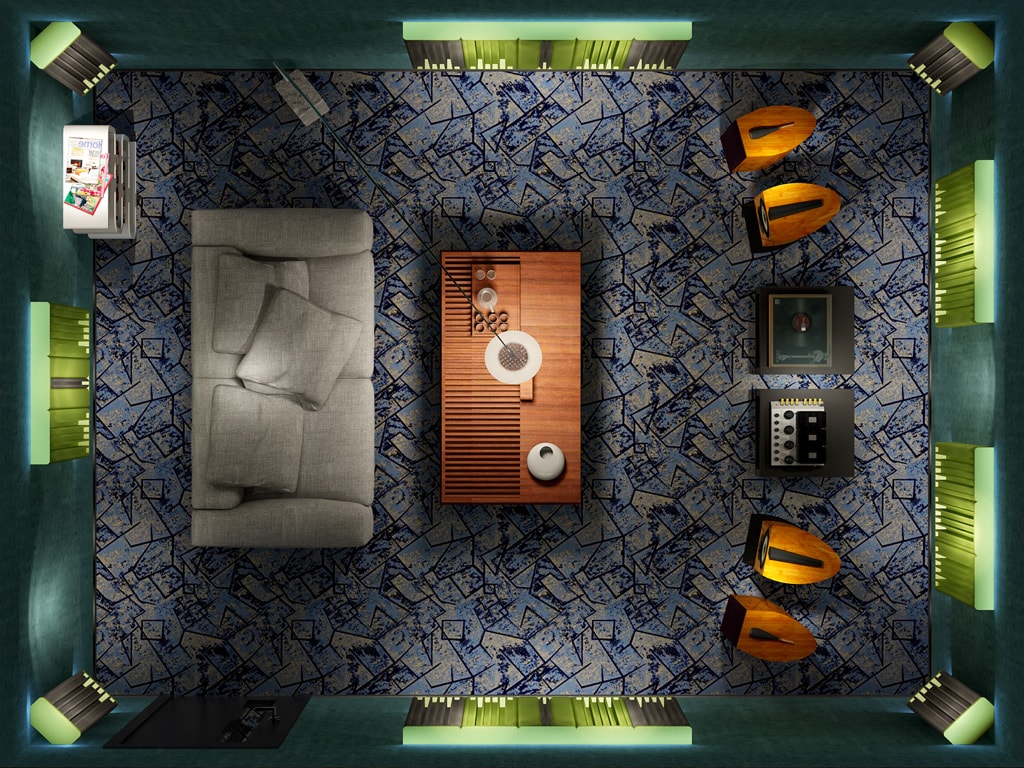

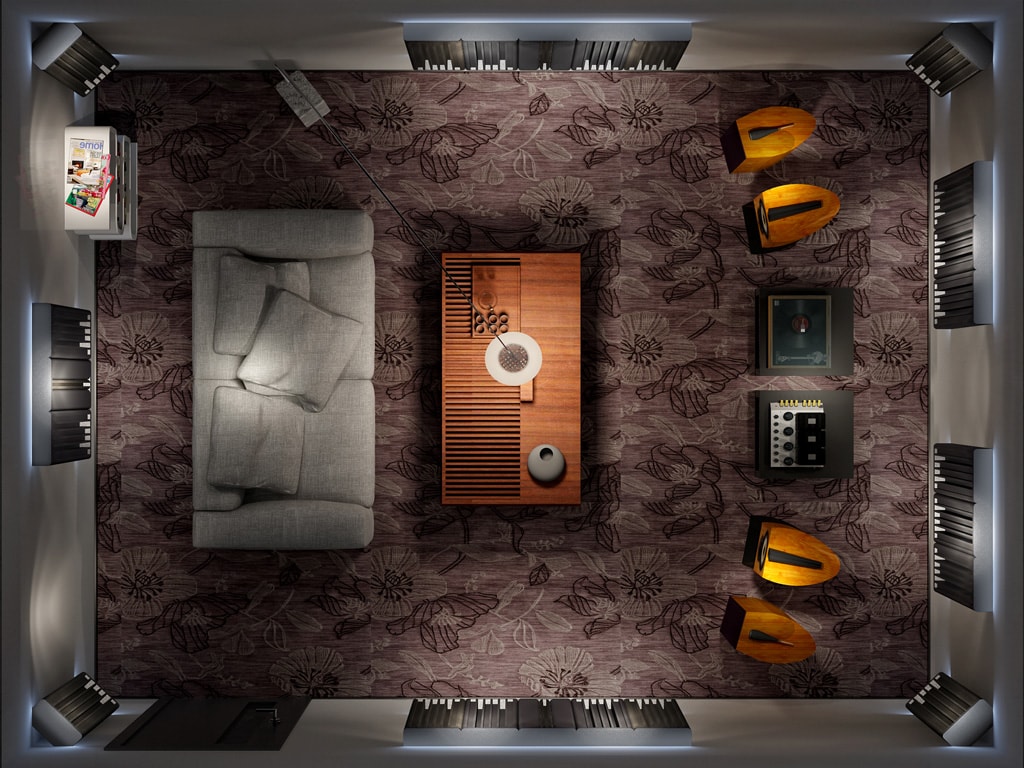

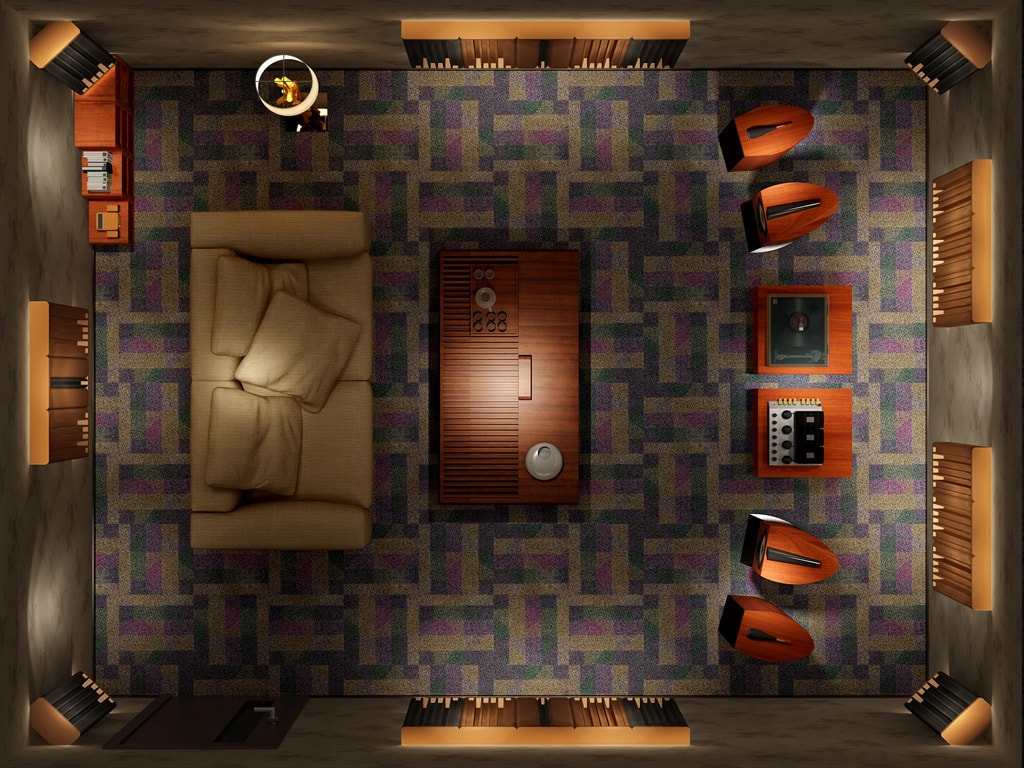

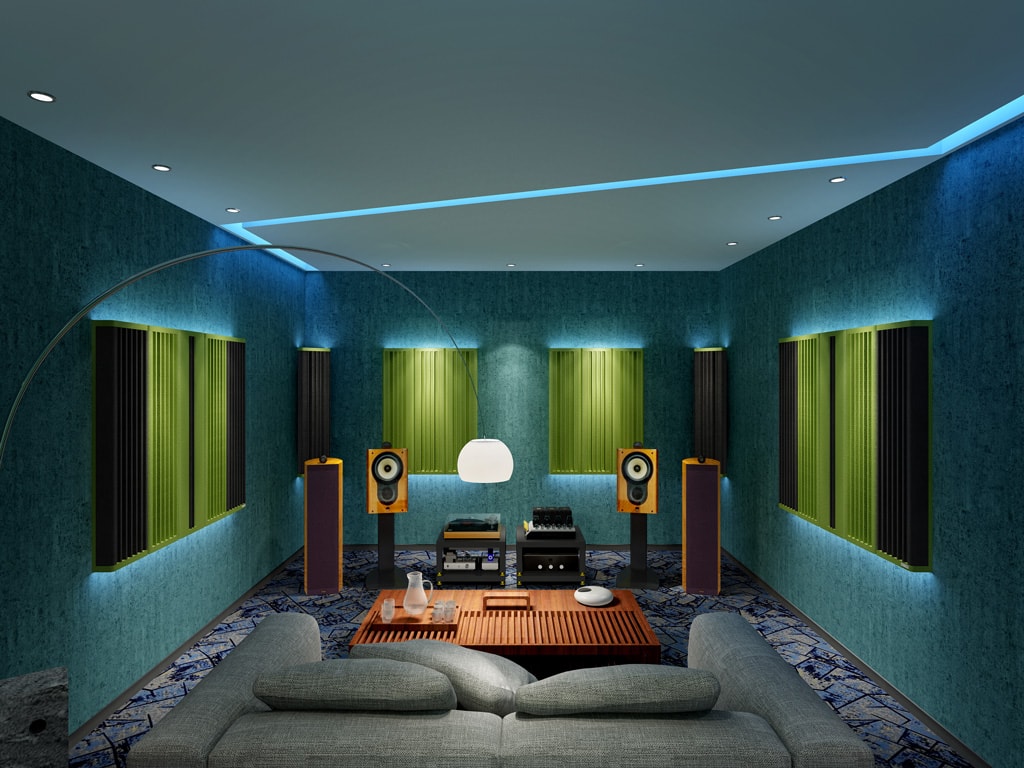

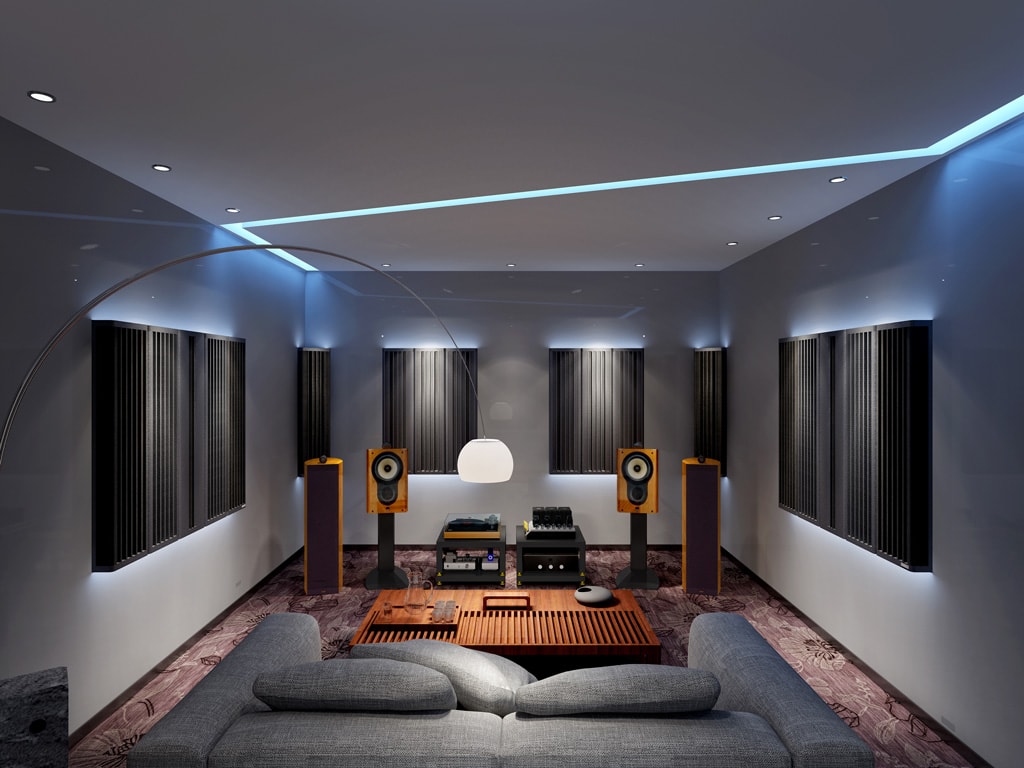

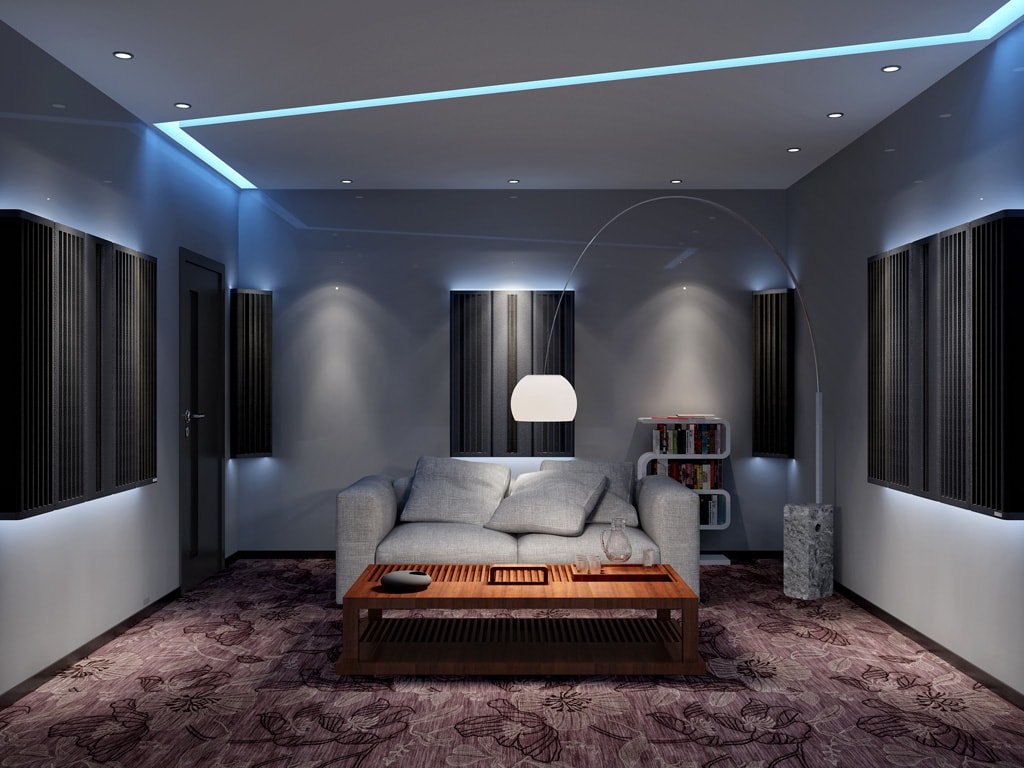

商品情景
Commodity Scene
No: 02040302
示意空间：长5000 x 宽4000 x 高2800mm
适用范围：15 – 30m²
No: 02040308
示意空间：长5000 x 宽4000 x 高2800mm
适用范围：15 – 30m²
No: 02040303
示意空间：长5000 x 宽4000 x 高2800mm
适用范围：15 – 30m²
No: 02040305
示意空间：长5000 x 宽4000 x 高2800mm
适用范围：15 – 30m²
方案参数
Specification
适用空间：
D4300~6400 * W3500~4700 * H 2600~2800 mm
应用功能：Hi-Fi / Hi-END
组合特性：四立面墙身安置25%全频吸收，75%中高频扩散声学板，容易形成驻波的4个墙角安置宽频角位低频陷阱
声学功能：降低空间多维平衡反射声驻波，有效提升声音饱满度和细腻度
使用条件：已装修空间DIY组合安装
Room dimension:
D4300~6400 * W3500~4700 * H 2600~2800 mm
System: Hi-Fi / Hi-END
Combination: 25% all band frequencies absorption, 75% medium and high frequencies diffusers, broad band bass traps at four corners which standing wave mostly present
Acoustic feature: To decrease balanced reflected standing wave, improving sound fullness and delicacy
Application: Decorated room, DIY installation
