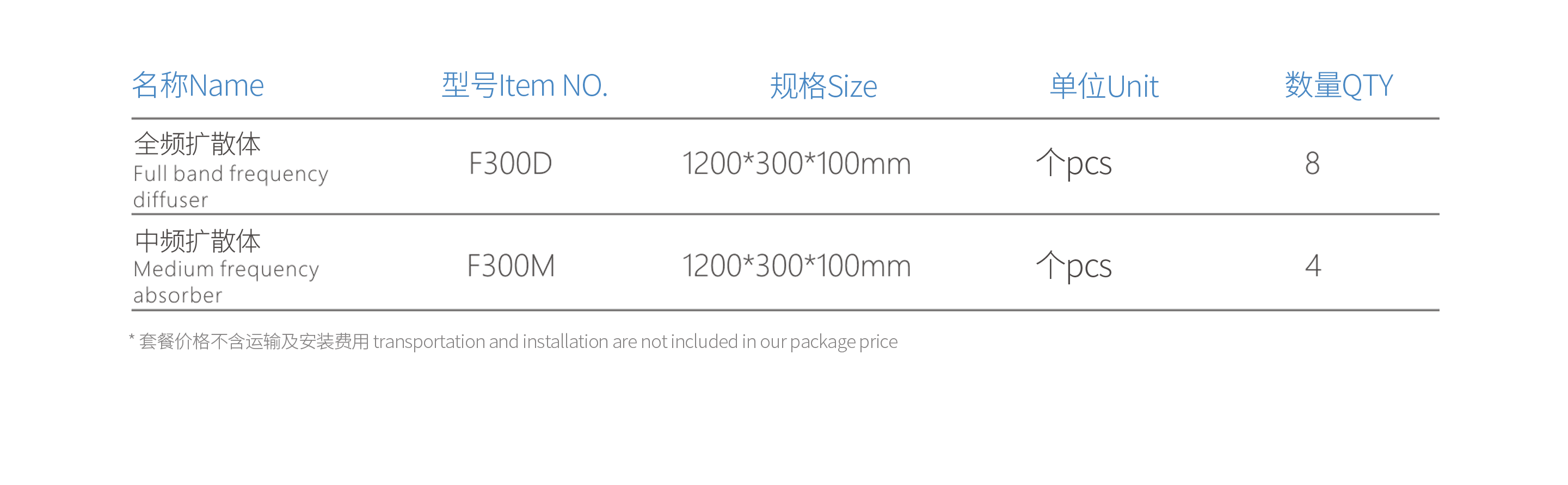

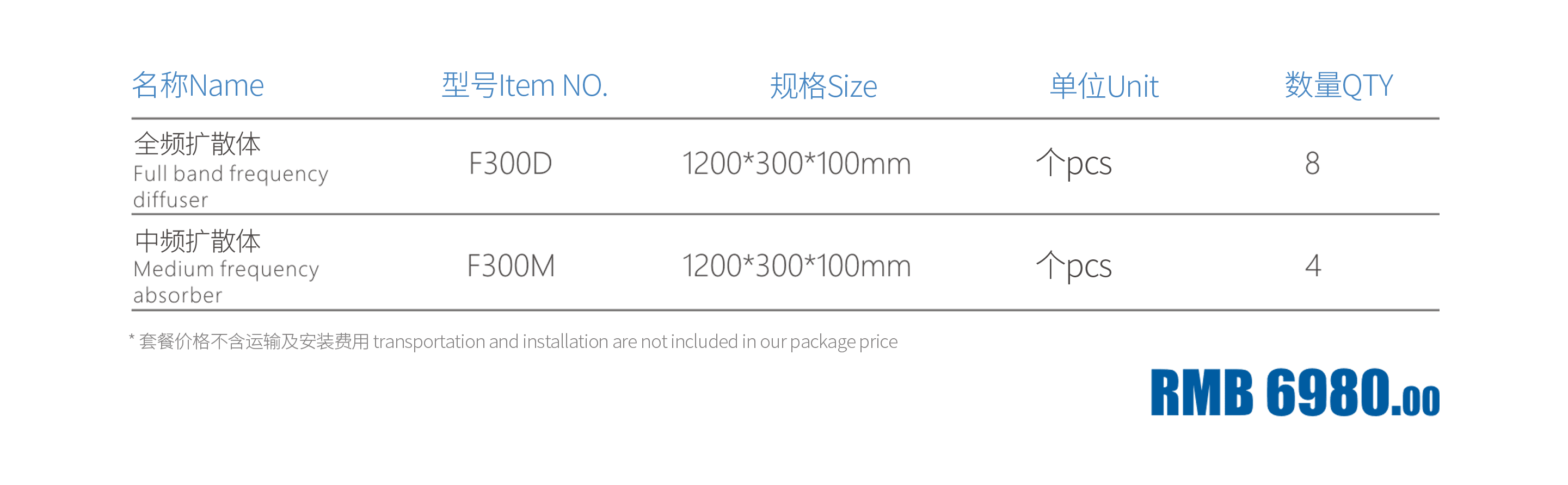

套餐清单
Package Lists

F300M 中频吸声体 Medium frequency absorber

基材:Polymer 高分子聚合物 / Polyether polyol 聚醚多元醇阻燃声学棉
饰面:E0环保水性颗粒面漆
特点:Polymer高分子聚合物浇注成型半密闭空腔结构,导流口配备U型Polyether polyol声学棉成功掌控流阻指数,形成有效应对300-800Hz的定量捕捉器。
规格:H1200 * W300 * D100mm ≤1.6Kg/个

Base Material: Polymer/Polyether polyol fire retardant acoustic foam
Finish: E0 ECO water-based paint
Features: The semi-closed cavity structure which formed by pouring polymer material, and the U-type Polyether polyol acoustic foam controls Flow resistance index, form a capture to deal with 300-800Hz
Size: H1200 * W300 * D100mm≤1.6kg/pcs

F300D 全频扩散体 Full band frequency diffuser

基材:Polymer 高分子聚合物
饰面:E0环保水性颗粒面漆
特点:Polymer高分子聚合物结合高强度无机涂层,既满足了设计扩散频率对材质面密度的要求,又大幅降低产品自重和克服传统材质缺陷。 QRD序列有着显著的扩散效果,不损害自然混响的作用下,有效改善小空间声干涩,提高环境音质丰富度及立体感。
规格:H1200 * W300 * D100mm ≤2.8Kg/个

Base Material: Polymer, chemical compound with large molecules
Finish: E0 ECO water-based paint
Acoustic structure: Combining high tensile inorganic coating, Polymer satisfies the technical requirement from the design on diffusion frequency and density of materials. At the same time, we decrease product weight so that eliminate defects of traditional materials. QRD array plays diffusion role effectively. When bettering sound dryness in small rooms, it improves sound fullness and surrounding sense without hurting natural RT60.
Size: H1200 * W300 * D100mm ≤2.8kg/pcs

适用于空间
Applicable to 15 – 30m²

商品情景
Commodity Scene

No: 02040302T
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:15 – 30m²

No: 02040308T
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:15 – 30m²

No: 02040303T
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:15 – 30m²

No: 02040305T
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:15 – 30m²

天花摆布示意图
Ceiling schematic

适用空间:
D4300~6400 * W3500~4700 * H 2600~2800 mm
应用功能:Hi-Fi / Hi-END

Room dimension:
D4300~6400 * W3500~4700 * H 2600~2800 mm
System: Hi-Fi / Hi-END

混响时间曲线分析图

郑 重 敬 告

本方案所涉产品及图片专利著作权归属广州声博士声学技术有限公司所有
未经授权篡改内容,擅自挪用、假冒仿制将追究法律责任
