ARC 300弧形声学体 Diffuser

基材：进口桦木复合基材
饰面：樱桃木面/PU漆面 纯天然原木材质
特点：弧形180度水平扩散，20% 不对称狭缝宽频吸收机能，内置非平衡低频吸收腔体，复合声学物质填充处理，有效吸收350Hz以下低频余量，水平扩散平衡反射声，不损失声能的同时，又获得相对均匀的声环境。
规格：H1800 * W300 * D150mm ≤14kg/个（对应标准规格H值）

Base Material: Imported birch
Finish: Cherry veneer/Baking PU finish paint Pure natural solid wood material
Acoustic Properties: An 180°Curve diffusing surface with 20% different slot for absorbing broadband frequency. There’s unbalanced low frequency absorbing cavity inside,filled with green acoustic material to absorb margin sound below 350Hz effectively. The sound reflected will be fully diffused in certain directions. In this way, we do not only save sound energy consumption, but also obtain a relatively balanced acoustic environment.
Scope of Application: Concert,Multi-functional hall, Private cinema, Studio and HIFI room and other high-end interior acoustic decoration
Size: H1800 * W300 * D150mm ≤14kg/pcs (corresponds to standard specification Height values)

ARC 300W弧形声学体（角比特）Bass trap

基材：进口桦木复合基材
饰面：樱桃木面/PU漆面 纯天然原木材质
特点：弧形90度水平扩散面，20%不对称狭缝机能宽频吸收，内置三角低频吸收腔体，复合环保声学物质填充处理，有效吸收小空间角落250Hz低频声驻波，同时又将集结于角落的有益声能水平扩散回归既定空间，降低建声系统对声能量的损耗。
规格：H1800 * W300 * D300mm ≤17kg/个（对应标准规格H值）

Base Material: Imported birch
Finish: Cherry veneer/Baking PU finish paint
Acoustic Properties: A 90°Curve diffusing surface with 20% different slot for absorbing broadband frequency. There’s a triangle low frequency absorbing cavity inside, filled with green acoustic material to absorb standing waves in 250Hz effectively. At the same time, this cavity scatters the beneficial sound energy gathered on the corner. That is a way to minimise the consumption of sound energy from an acoustic system.
Scope of Application: Concert, Multi-functional hall, Private cinema, Studio and HIFI room and other high-end interior acoustic decoration
Size: H1800 * W300 * D300mm ≤17kg/pcs (corresponds to standard specification Height values)

EQ50B调谐板 Walleasear

基材：纯天然环保纤维复合声学棉 / 专利模具型材铝框
饰面：亚麻双密度复合声学布
特点：密闭式框体包裹三层非对等密度复合基材，准封闭式宽频吸收声学空腔
环保：零排放符合国际E0环保标准
规格：H1800 * W600/300 * D50mm ≤6.2Kg/m2 / ≤3.1Kg/m2
安装：防共震易安装件

Base Material: Purely natural green fibre acoustic wool/Patented anti-oxidized frame
Finish: Well performed acoustic cloth
Acoustic structure: Three layers base material in different density are wrapped in the air tight frame, making it into an acoustic cavity for absorbing sound in broadband frequency
Eco-Friendly: Zero Formaldehyde emission; Up to E0 standard
Size: H1800 * W600/300 * D50mm ≤6.2Kg/m2 / ≤3.1Kg/m2
Installation: Anti-resonance aluminium fixing system

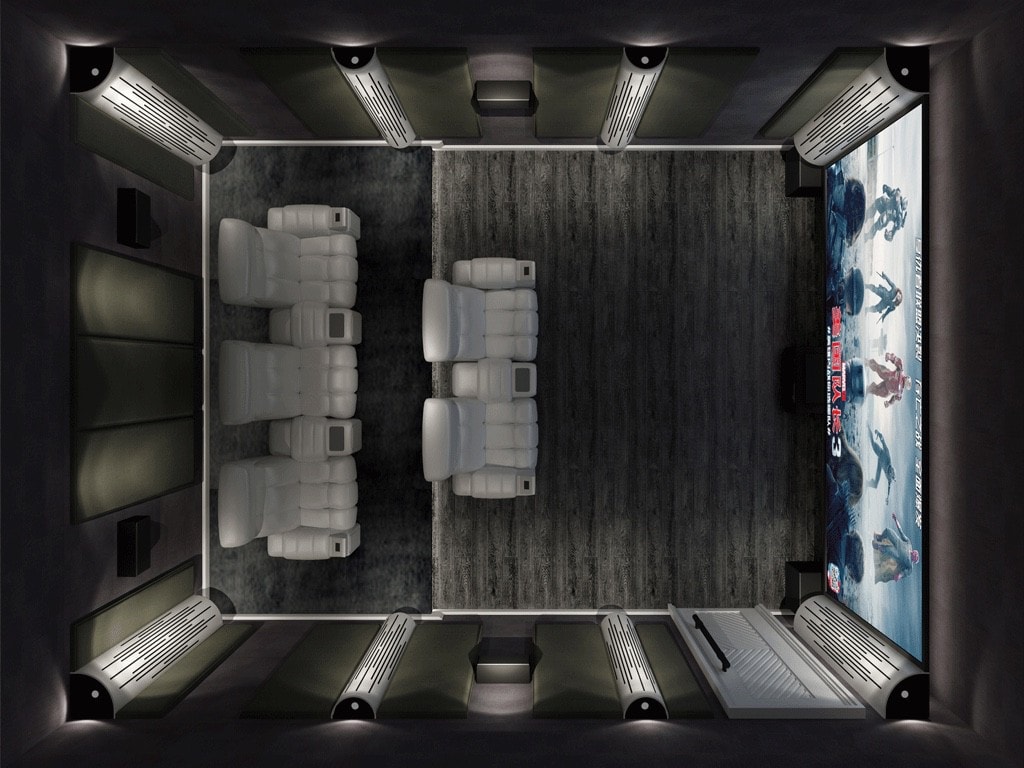

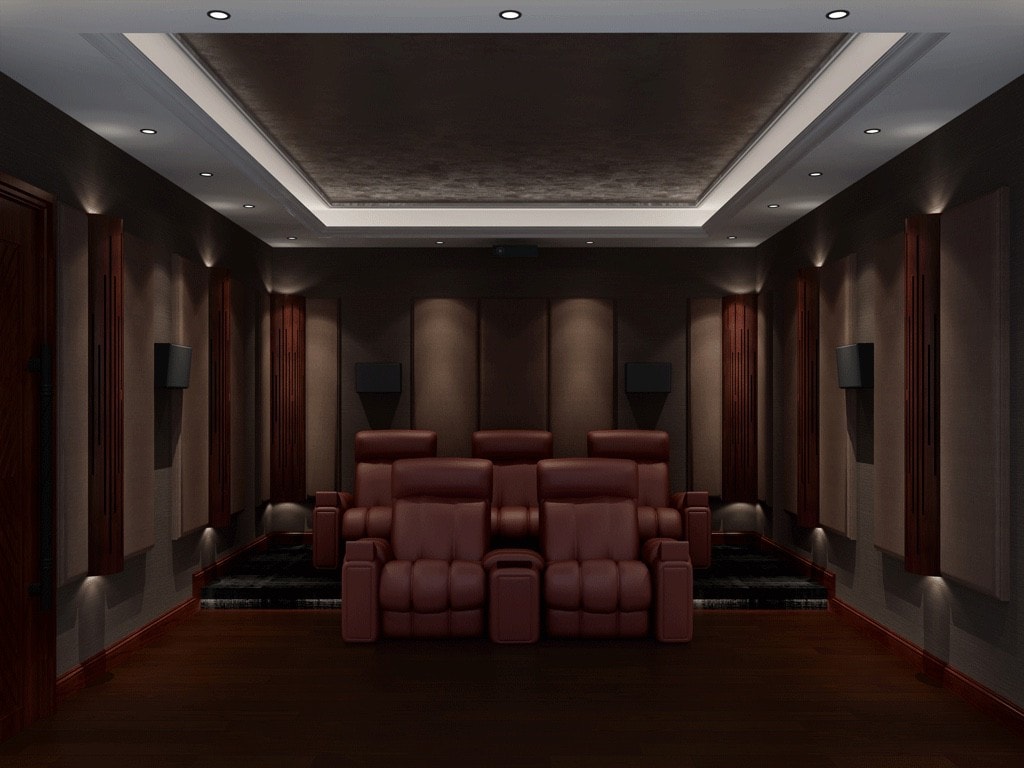

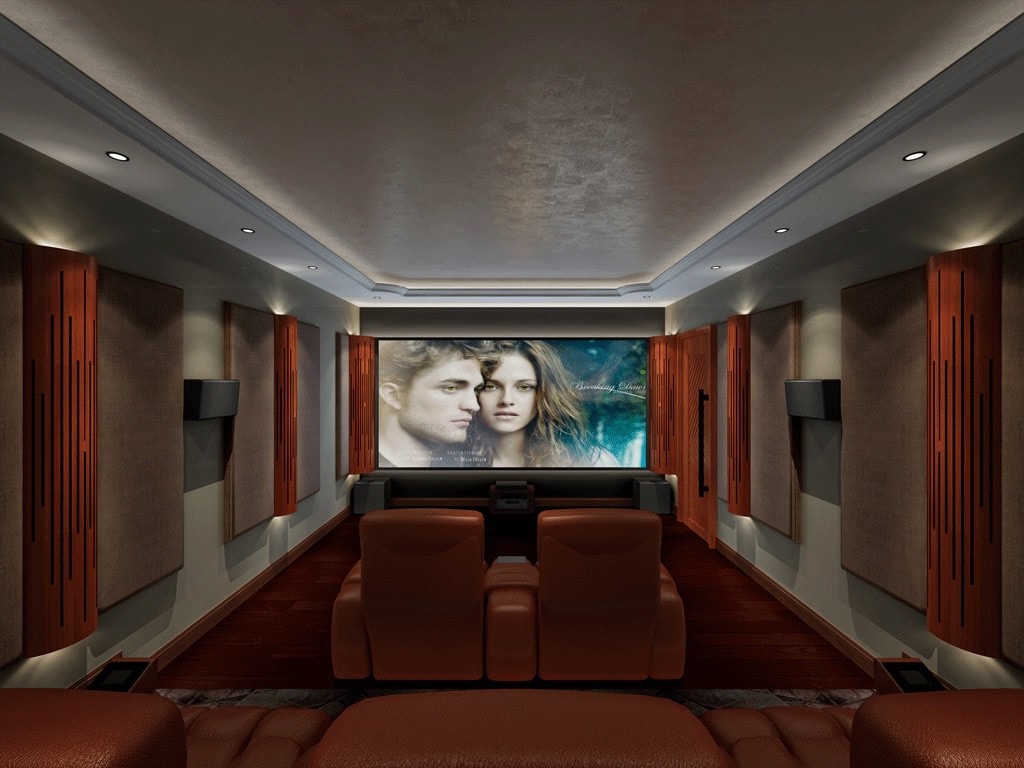

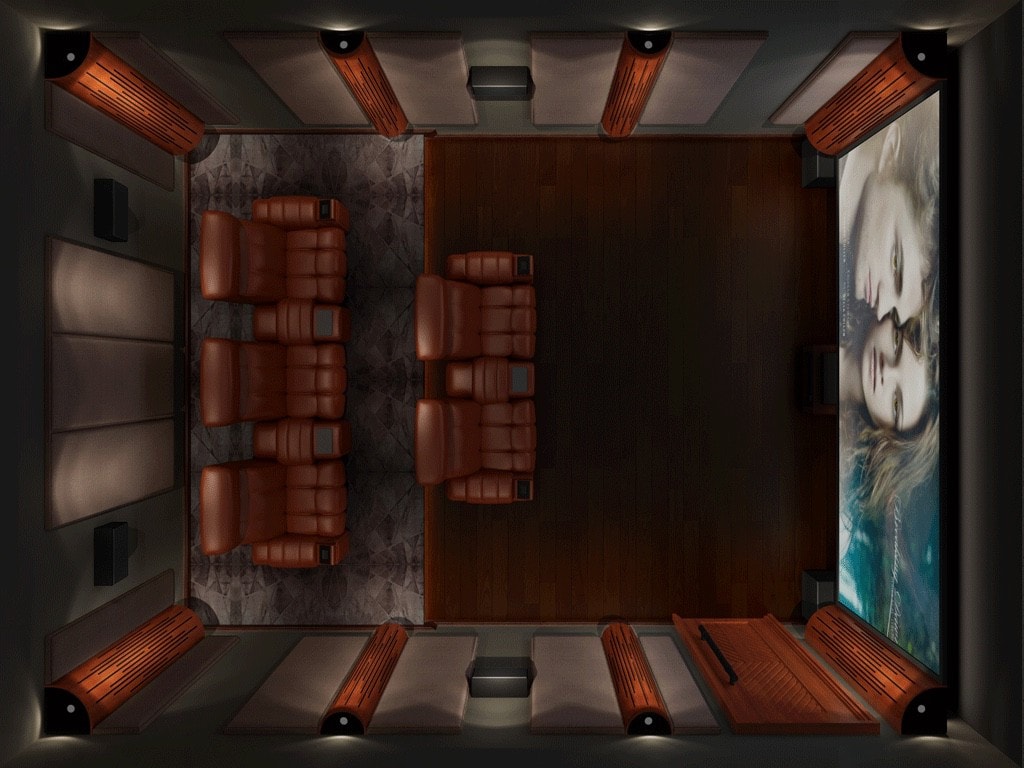

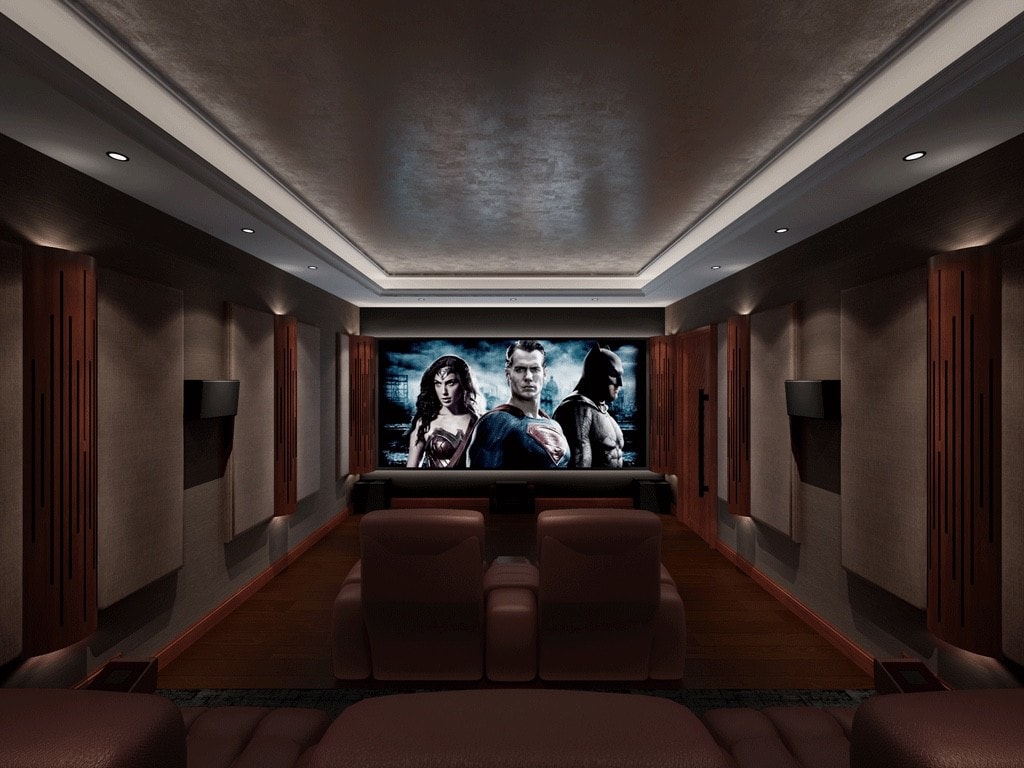

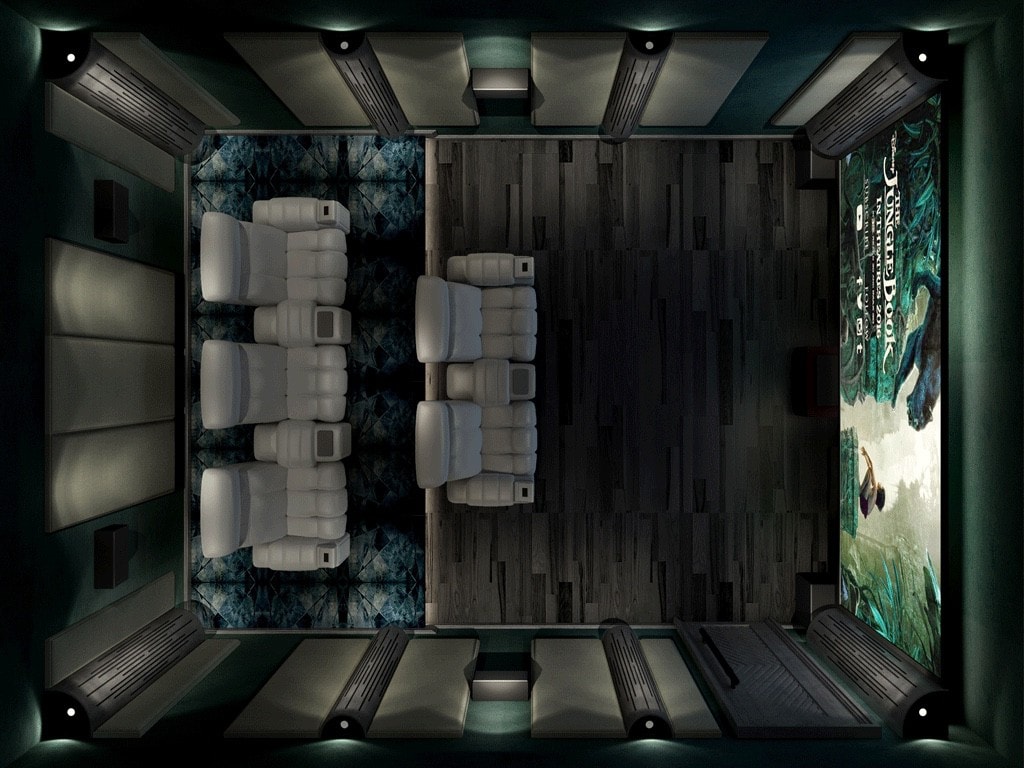

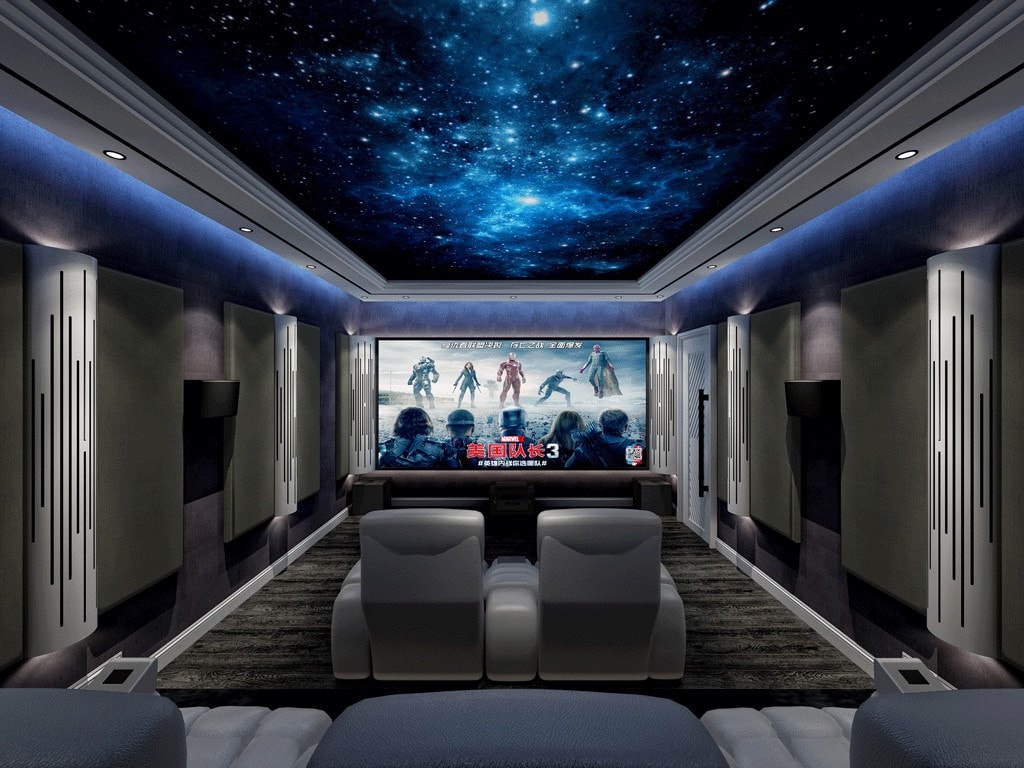

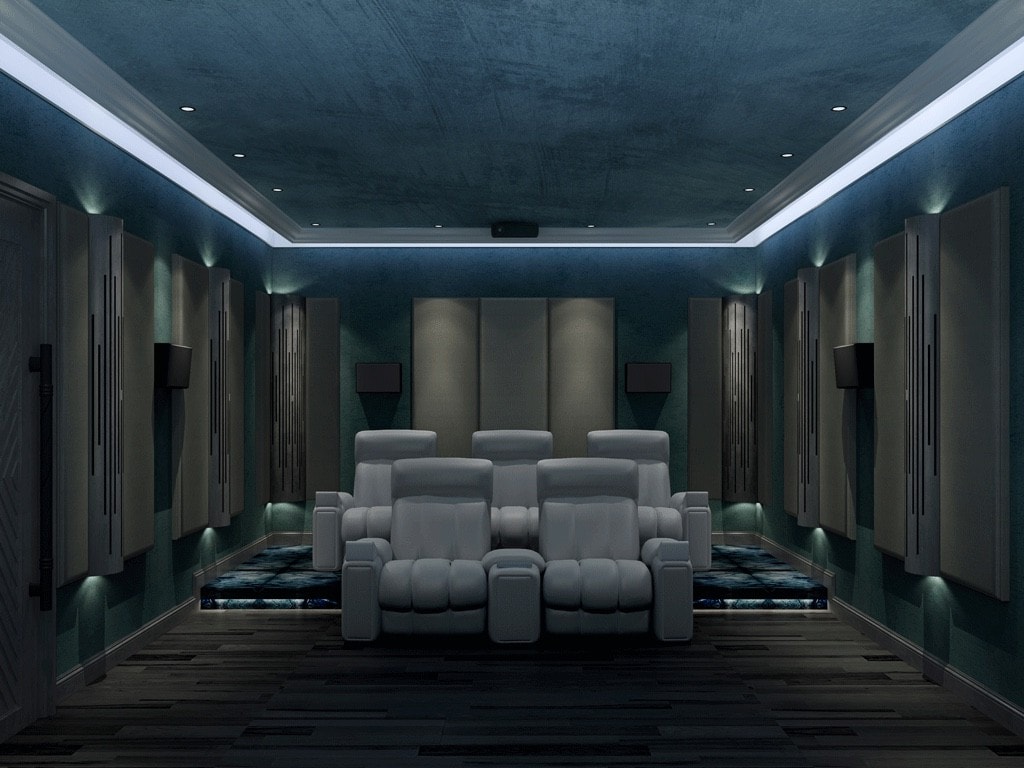

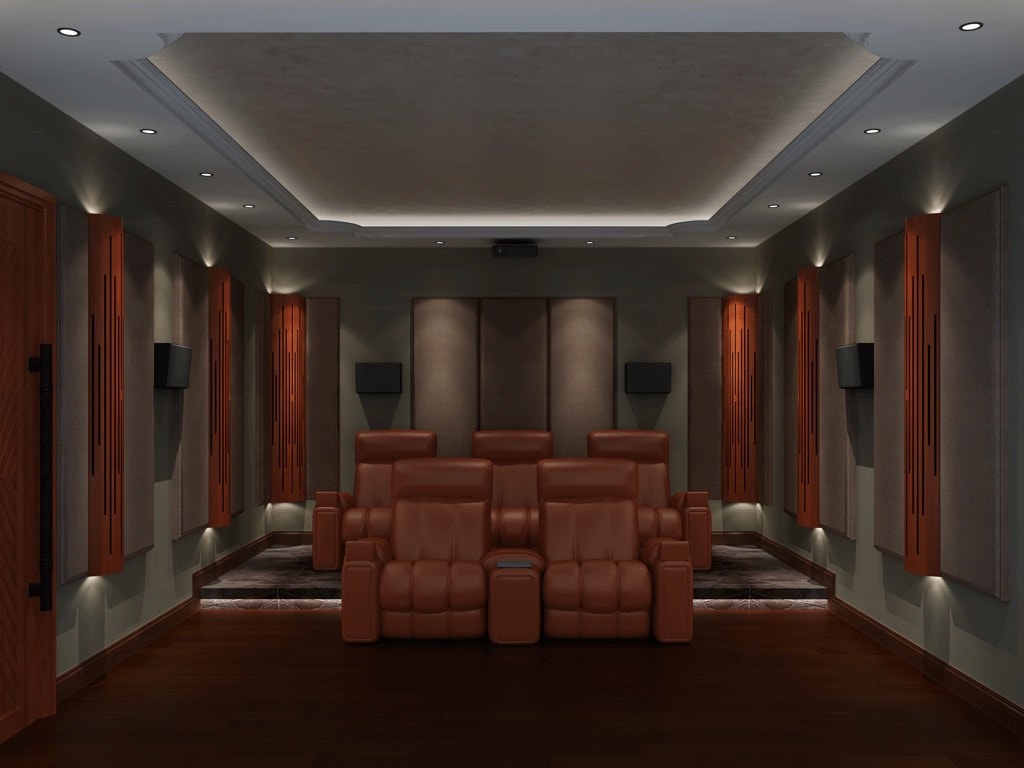

商品情景
Commodity Scene

No: 03090410
示意空间：长6000 x 宽4300 x 高2800mm
适用范围：25 – 35m²

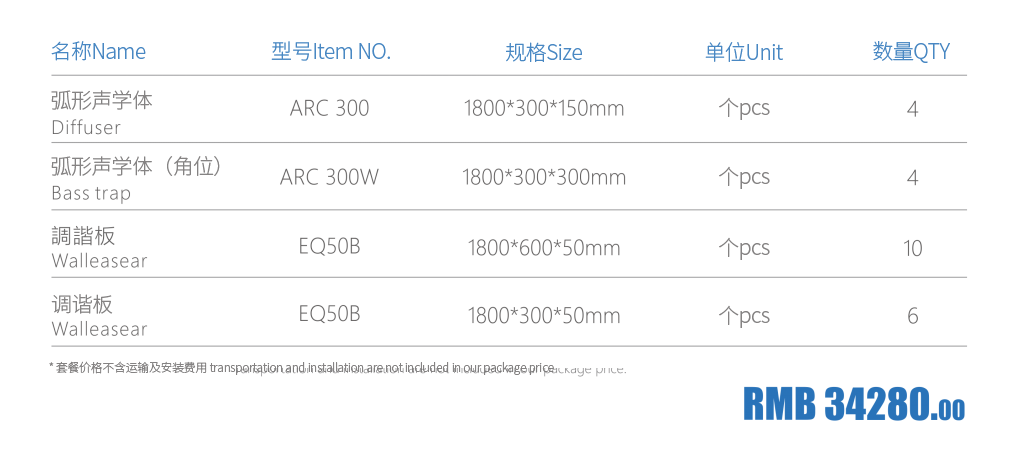

方案参数
Specification
