WAVE 600 波浪声学体 Diffuser

基材：进口桦木复合基材
饰面：樱桃木面/PU漆面
特点：20%不对称狭缝宽频收吸机能，三个叠加倍程波浪扩散面， 内置不等容积低频吸收腔，复合声学物质填充处理，吸收550-250Hz之间低频余量，叠加倍频MLS扩散面水平散射平衡反射声，不损失声能的同时，又获得更均匀的声环境。
规格：H1800 * W600 * D160mm≤28kg/个（对应标准规格H值）

Base Material: Imported birch
Finish: Cherry veneer/Baking PU finish paint
Acoustic Properties: The curve diffusing surface is superimposed onto three octaves, with 20% different slot for absorbing broadband frequency. Three low-frequency cavities in the different volume are set inside, filled with green acoustic material to absorb margin low frequency from 250-550 Hz. This curvefuser scatters reflected sound fully in a way that does not only save sound energy consumption but also obtains a relatively balanced acoustic environment.
Size: H1800 * W600 * D160mm≤28kg/pc(corresponds to standard specification Height values)

ARC 300W 弧形声学体（角比特）Bass trap

基材：进口桦木复合基材
饰面：樱桃木面/PU漆面 纯天然原木材质
特点：弧形90度水平扩散面，20%不对称狭缝机能宽频吸收，内置三角低频吸收腔体，复合环保声学物质填充处理，有效吸收小空间角落250Hz低频声驻波，同时又将集结于角落的有益声能水平扩散回归既定空间，降低建声系统对声能量的损耗。
规格：H1800 * W300 * D300mm ≤17kg/个（对应标准规格H值）

Base Material: Imported birch
Finish: Cherry veneer/Baking PU finish paint
Acoustic Properties: A 90°Curve diffusing surface with 20% different slot for absorbing broadband frequency. There’s a triangle low frequency absorbing cavity inside, filled with green acoustic material to absorb standing waves in 250Hz effectively. At the same time, this cavity scatters the beneficial sound energy gathered on the corner. That is a way to minimise the consumption of sound energy from the acoustic system.
Scope of Application: Concert, Multi-functional hall, Private cinema, Studio and HIFI room and other high-end interior acoustic decoration
Size: H1800 * W300 * D300mm ≤17kg/pcs (corresponds to standard specification Height values)

EQ50Q 调谐板 Walleasear

基材：纯天然环保纤维复合声学棉 / 专利模具型材铝框
饰面：亚麻双密度复合声学布
特点：密闭式框体包裹四层非对等密度复合基材，准封闭式宽频吸收声学空腔
环保：零排放符合国际E0环保标准
规格：H1800 * W600/300 * D50mm ≤6.2Kg/m2 /≤3.1Kg/m2
安装：防共震易安装件

Base Material: Purely natural green fibre acoustic wool/Patented anti-oxidized frame
Finish: Well performed acoustic cloth
Acoustic structure: Four layers base material in different density are wrapped in the air tight frame, making it into an acoustic cavity for absorbing sound in broadband frequency
Eco-Friendly: Zero Formaldehyde emission; Up to E0 standard
Size: H1800 * W600/300 * D50mm ≤6.2Kg/m2 /≤3.1Kg/m2
Installation: Anti-resonance aluminium fixing system

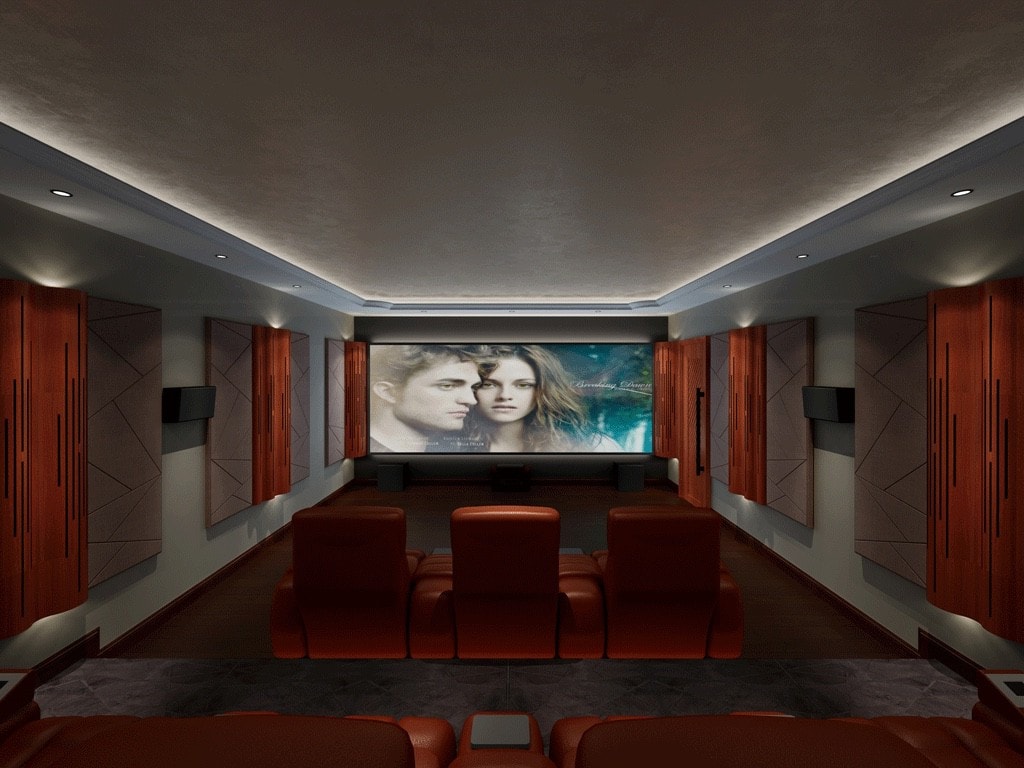

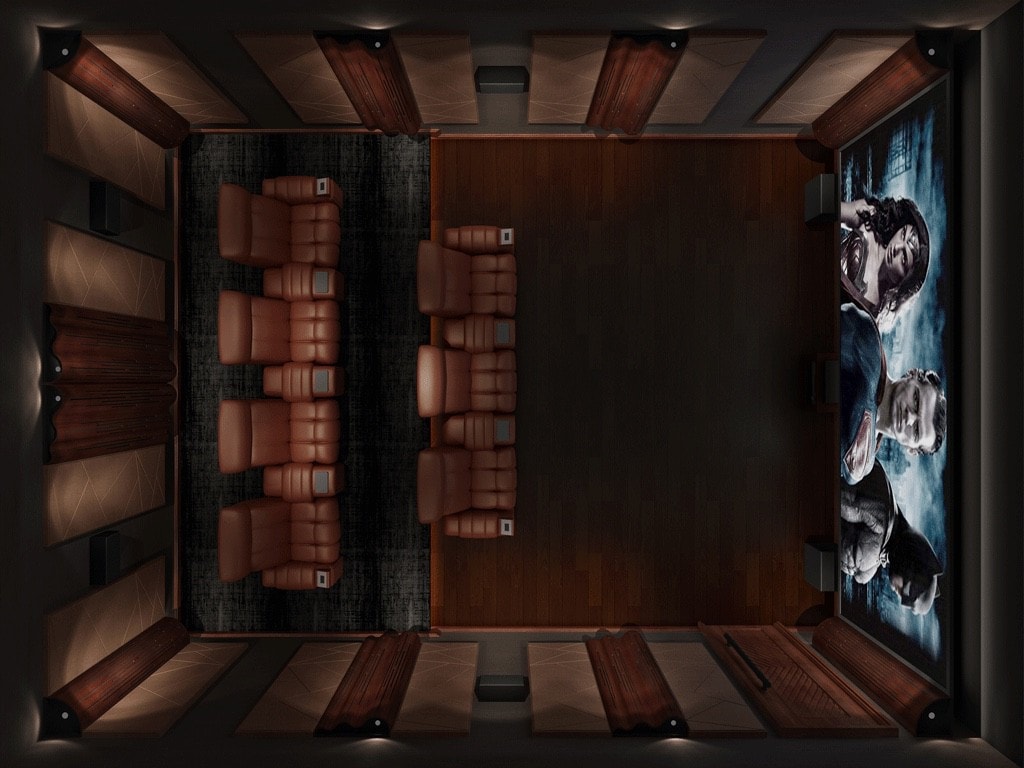

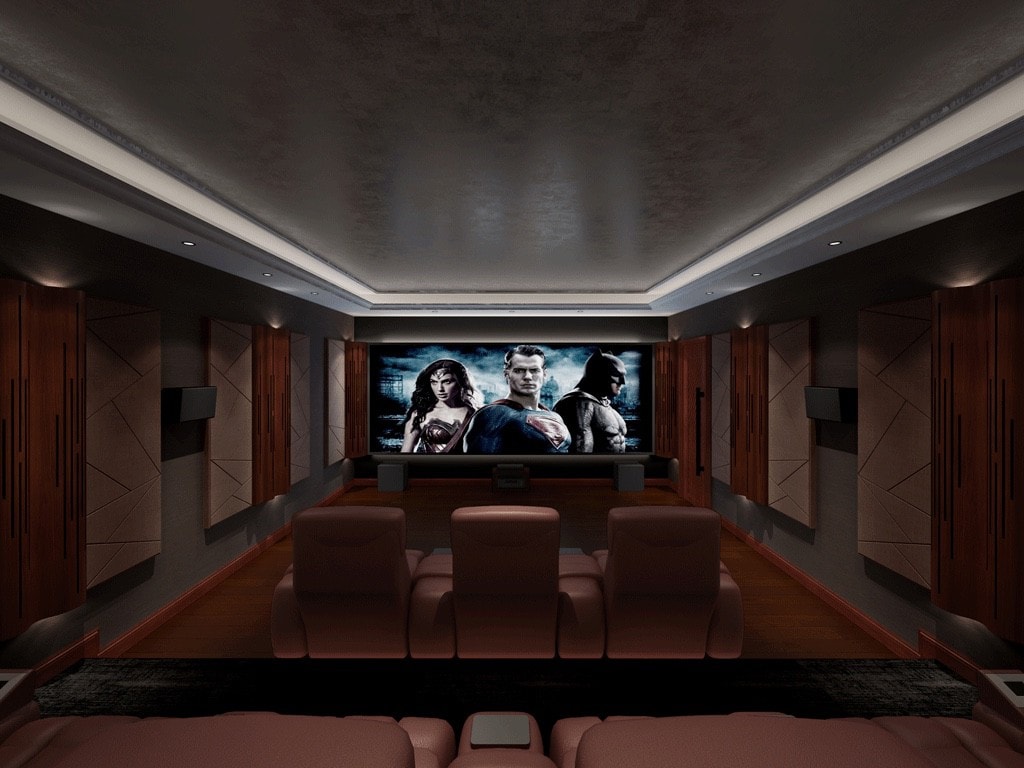

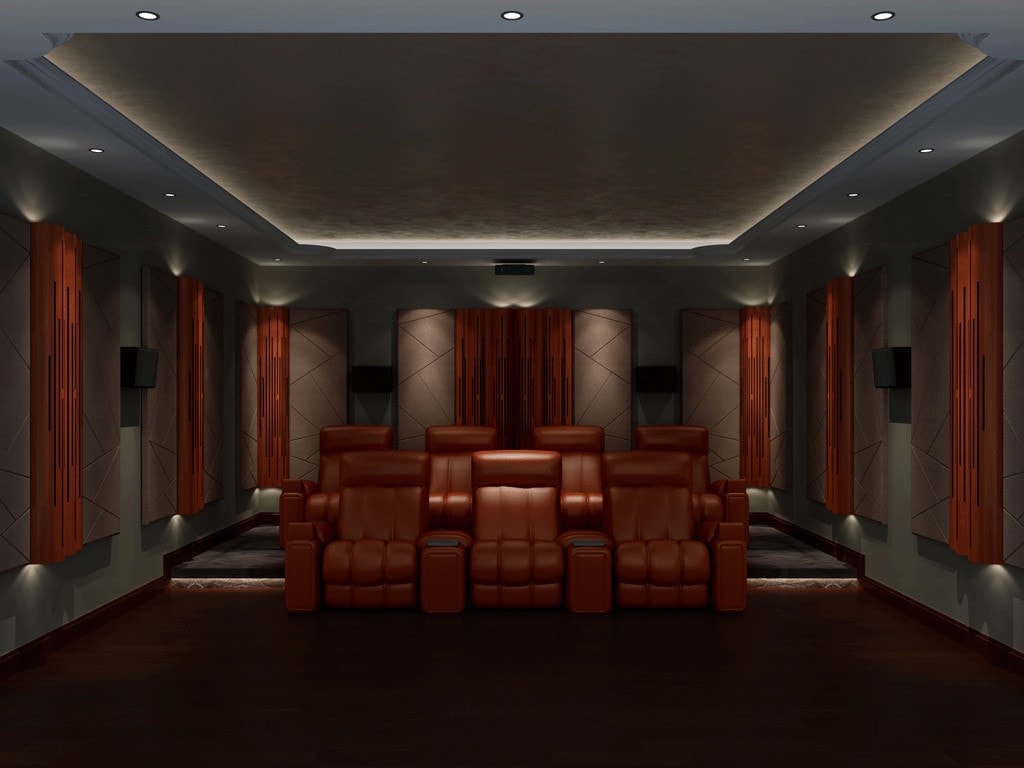

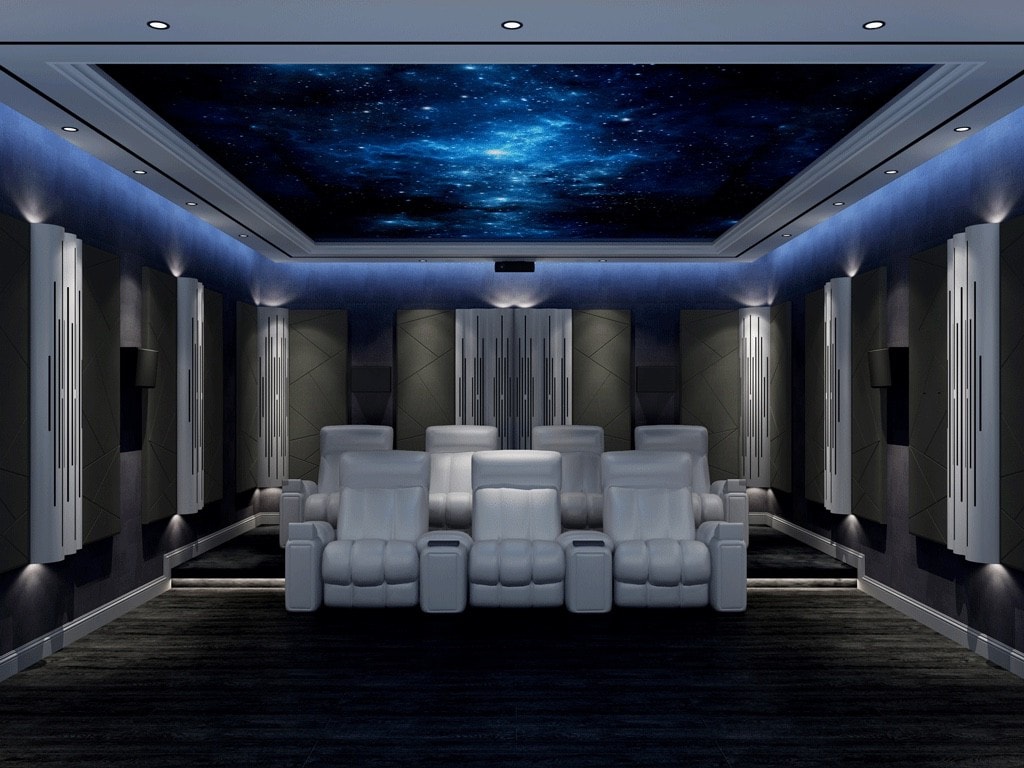

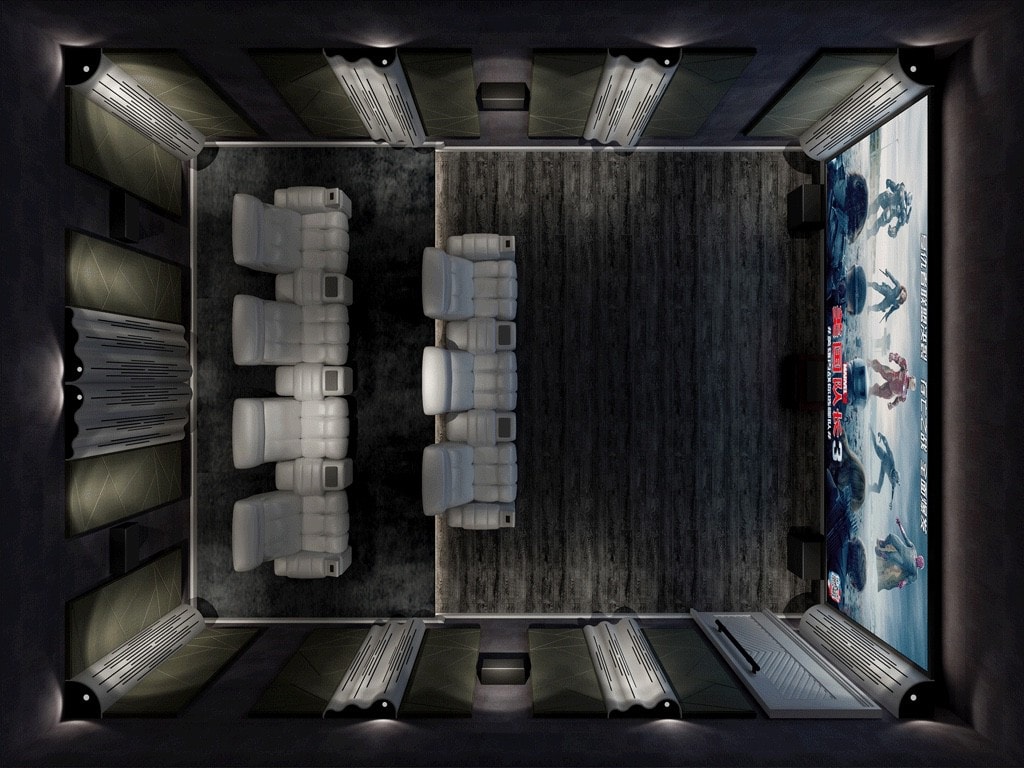

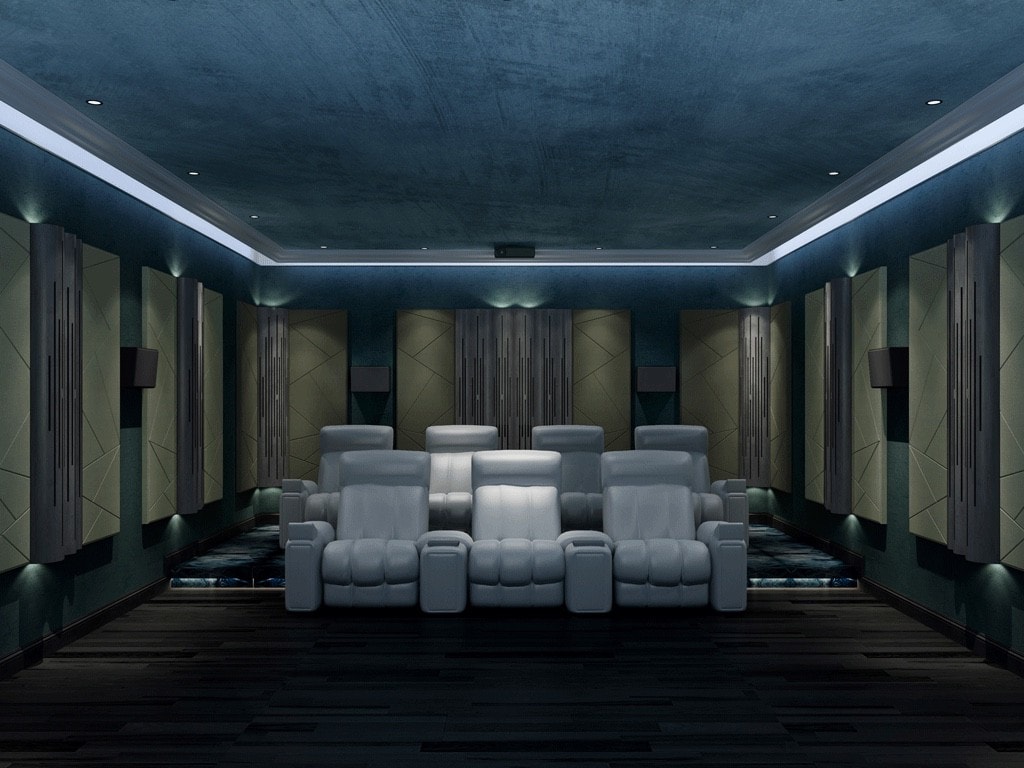

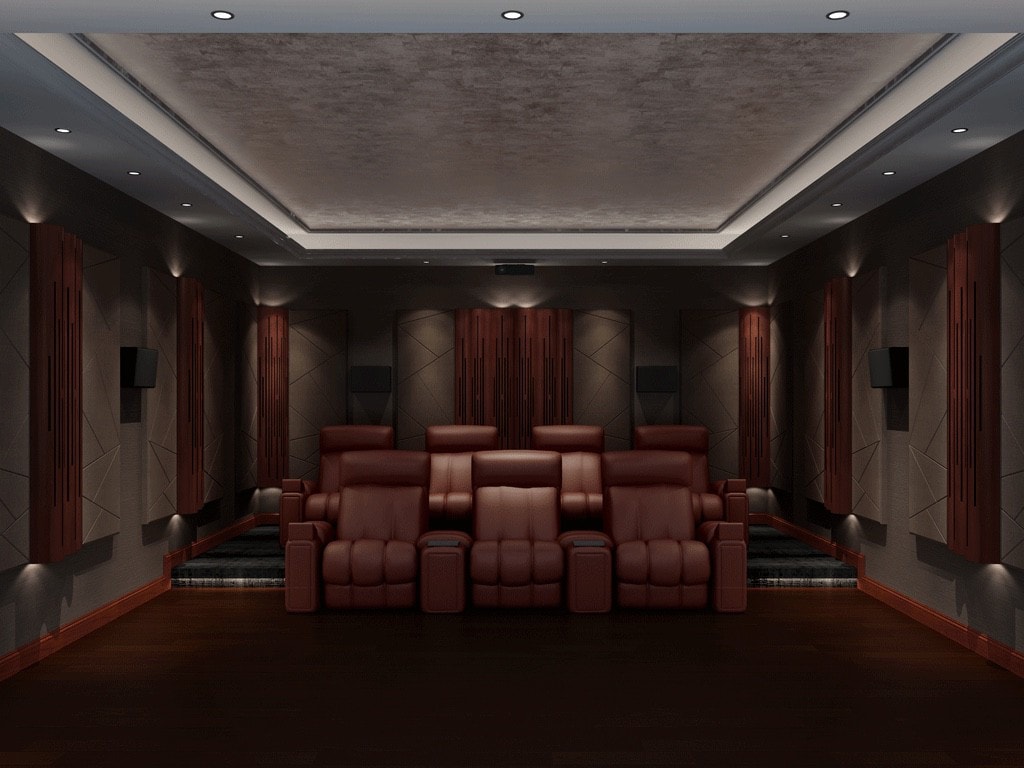

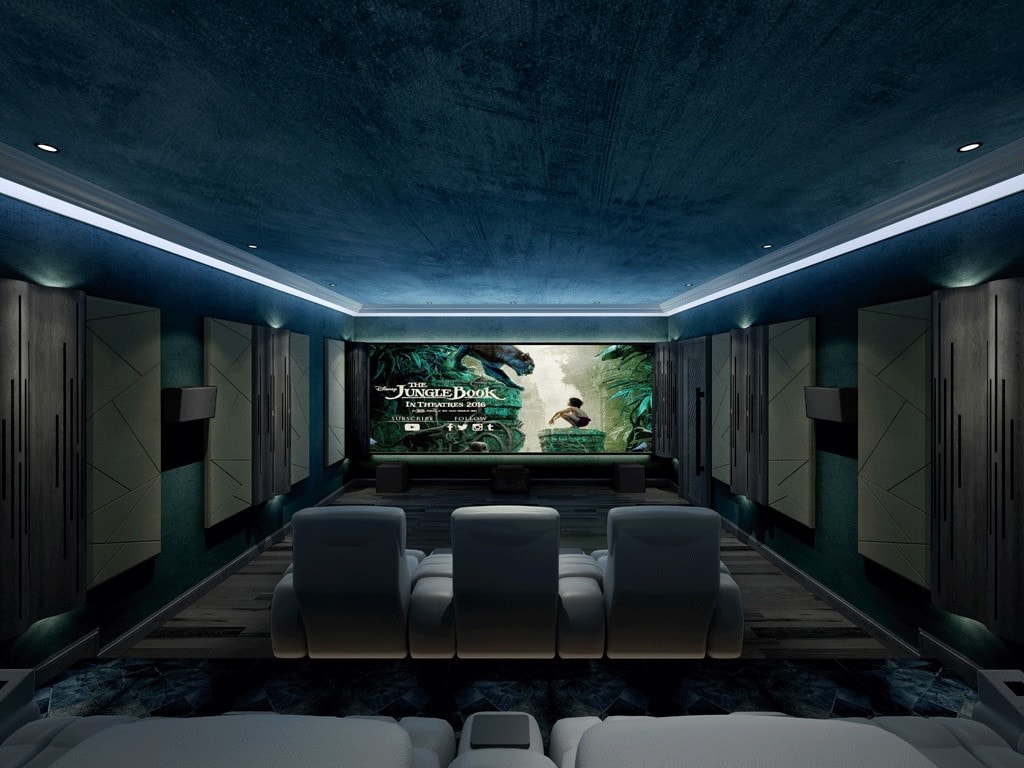

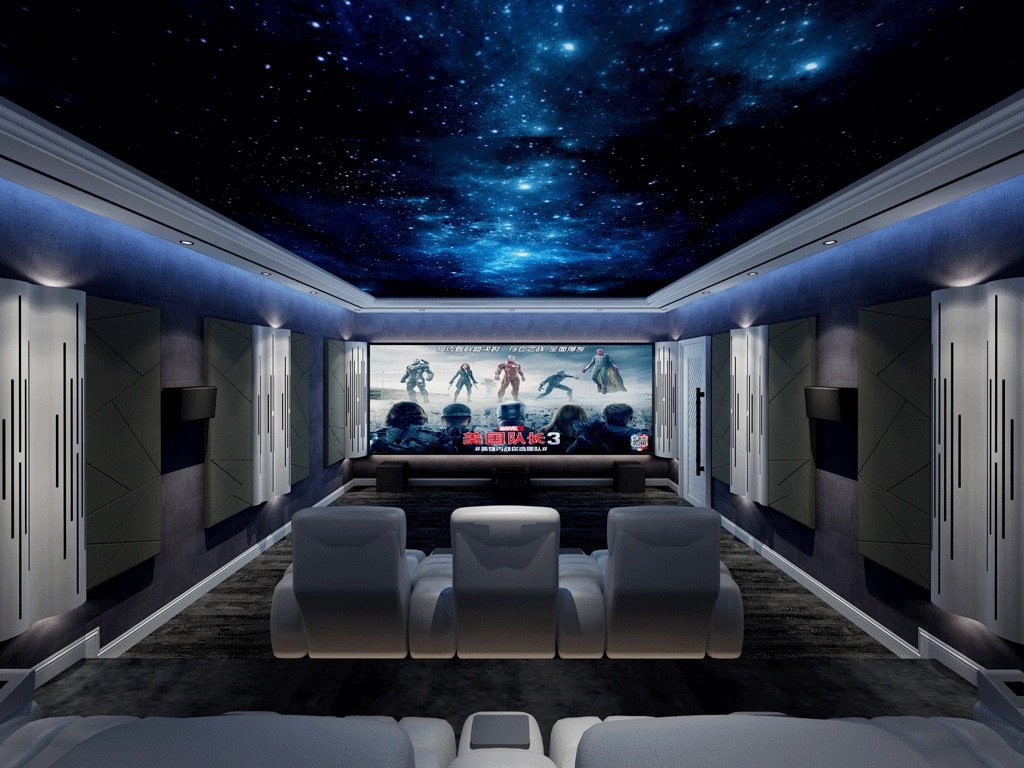

商品情景
Commodity Scene

No: 03100510

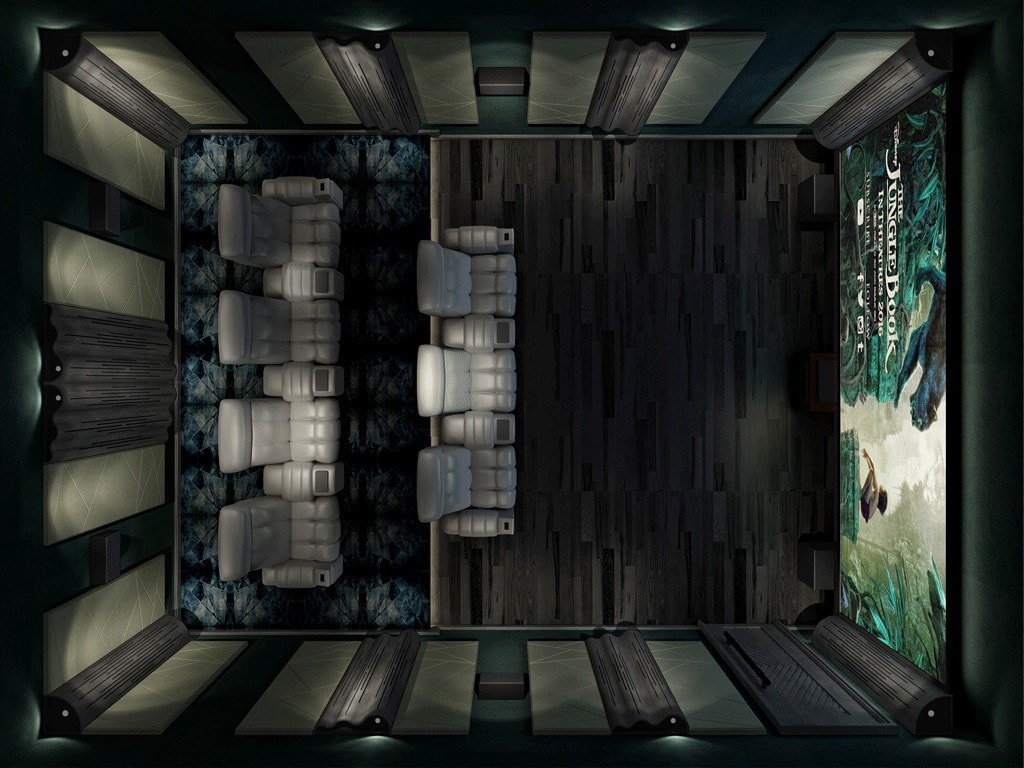

示意空间：长7500 x 宽5500 x 高2800mm
适用范围：35 – 50m²

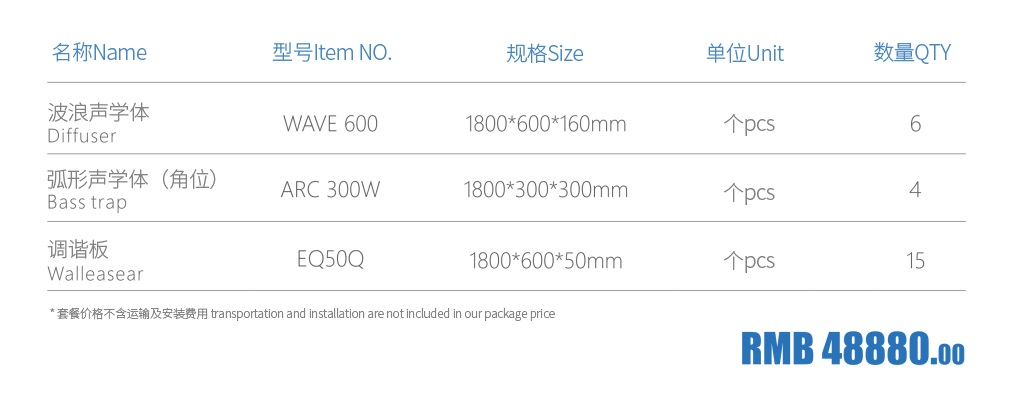

方案参数
Specification
